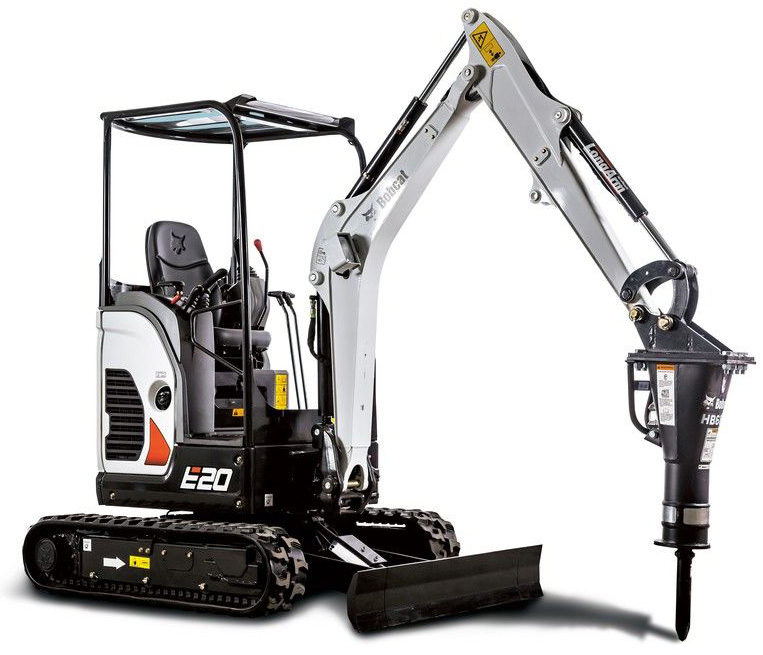

Bobcat® R-Series E20

2024 Bobcat® Compact Excavators E20

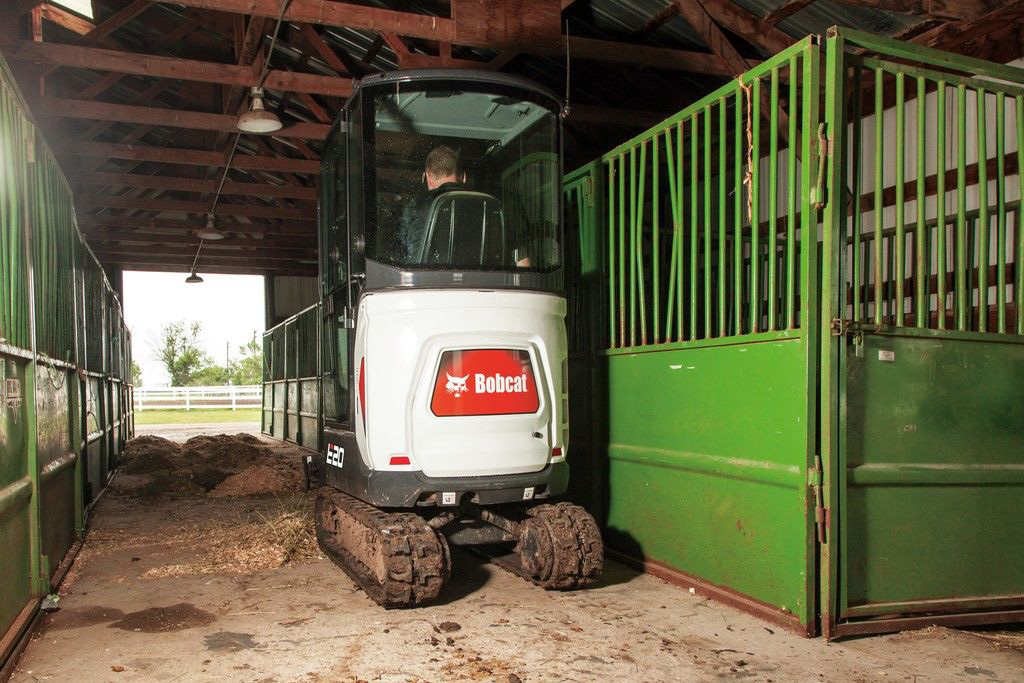

The Bobcat® E20 compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 39 in. to travel through gates or between homes, then expand to 54 in. for a wider footprint and greater performance. Zero tail swing gives you better maneuverability on the most restricted jobsites.

Features may include:

Performance Features

• Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

• Intelligently designed components keep you on the job working.

Comfort Features

• More standard comfort features make hard work easier.

Serviceability Features

• Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

• The industry leader in attachments and attachment-ready features.

• Model NameR-Series
• Trim NameE20
• Generic Type (Primary)Compact
• EmissionsTier (EPA): Tier 4
• Fuel System
• Fuel TypeDiesel
• Operational
• Operating ConditionsBucket Digging Force: 4,684 lbf | Arm Digging Force: 2,086 lbf
• Operating SpeedMaximum Governed RPM: 2,500 rpm | Travel – High: 2.6 mph | Travel – Low 1.3 mph
• Hydraulics
• Hydraulic FlowAuxiliary Std Flow: 7.9 gal/min
• Maximum PressureAuxiliary: 2,610 psi
• DimensionsMaximum Reach at Ground Level: 167.9 in | Lift Radius: 118 in | Boom Swing – Left: 80° | Boom Swing – Right: 60°
• Width53.5 in
• Depth, MaximumMaximum Dig Depth: 101 in
• HeightMax Dump: 106 in | 90.4 in | with Operator Cab: 90.4 in
• Length145.2 in
• Overall Lengthin Travel Position: 145.2 in
• Capacities
• Hitch Lift CapacityRated Lift: 1098 lb
• Fuel CapacityTank: 5 gal
• Weights
• Weight, In Running OrderOperating: 4,306 lb
• WeightClass: 2 t
• FeaturesTail Swing Type: Zero
